[CC13] Type 2 to Type 3A (16A, 1-phase)

Name: [CC13] Type 2 to Type 3A (16A, 1-phase)
SKU: CC013
Availability: InStock

Price range: € 235,00 through € 311,00 ex.VAT

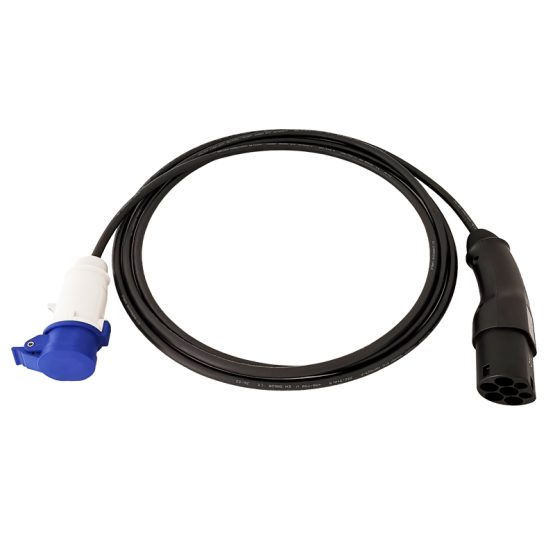

This charging cable is used for charging electric vehicles with Type 3A plug (common in Italy) from any public or home Mode 3 charging station (with Type 2 socket). Renault Twizzy sold in Italy is equipped with type 3A plug.

New feature: spiral type cable

Cable Length

Clear

SKU: CC013 Category: Special charging cables Tags: 1-phase, 16 A, EV charging cable, Type 2, Type 3A

Description

Description

Main features:

Designed for 1-phase EV charging with currents up to 16A
PREMIUM quality EV cable used
3 YEARS WARRANTY

Technical Specifications:

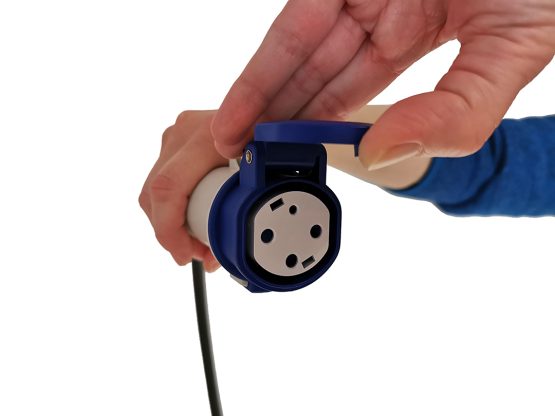

Plug Type (EV Side): Type 3A (IEC 62196-3) Female Plug
Plug Type (Charging Station Side): Type 2 (IEC 62196) Male Plug
Max. Charging Current: 16A (single phase)
Max. Charging Power: 3.7 kW
Rated Voltage: 230V (single phase)
Cable Length: from 3 to 12 m, as well as 5 m and 10 m spiral cable option
UV, oil and flame resistant cable insulation
Operating Ambient Air Temperature Range: -30 °C to +50 °C
IP Rating: IP55
Cable Color: Orange
Weight: depends on the cable length
100% compatible with all electric vehicles that have Type 3A receptacles and 16A/1-phase onboard chargers
