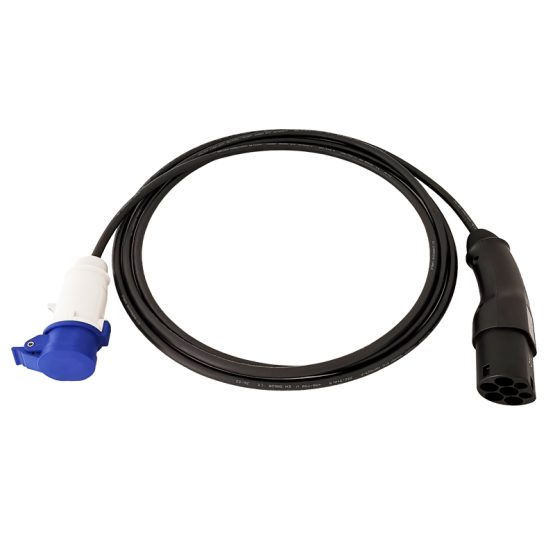

[CC13] Type 2 to Type 3A (16A, 1-phase)

 286.70 379.42

This charging cable is used for charging electric vehicles with Type 3A plug (common in Italy) from any public or home Mode 3 charging station (with Type 2 socket). Renault Twizzy sold in Italy is equipped with type 3A plug.

New feature: spiral type cable

Clear

Description

Main features:

  • Designed for 1-phase EV charging with currents up to 16A
  • PREMIUM quality EV cable used
  • 2 YEARS WARRANTY

Technical Specifications:

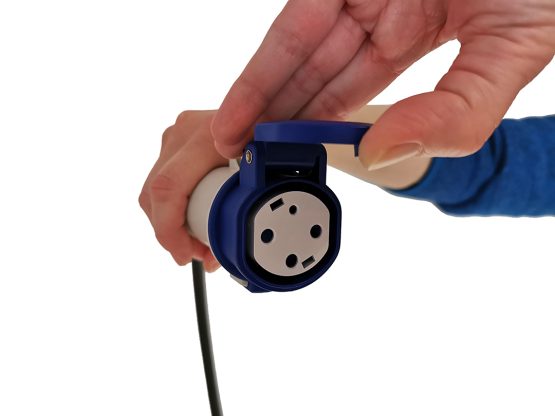

  • Plug Type (EV Side): Type 3A (IEC 62196-3) Female Plug
  • Plug Type (Charging Station Side): Type 2 (IEC 62196) Male Plug
  • Max. Charging Current: 16A (single phase)
  • Max. Charging Power: 3.7 kW
  • Rated Voltage: 230V (single phase)
  • Cable Length: from 3 to 12 m, as well as 5 m and 10 m spiral cable option
  • UV, oil and flame resistant cable insulation
  • Operating Ambient Air Temperature Range: -30 °C to +50 °C
  • IP Rating: IP55
  • Cable Color: Orange
  • Weight: depends on the cable length
  • 100% compatible with all electric vehicles that have Type 3A receptacles and 16A/1-phase onboard chargers
