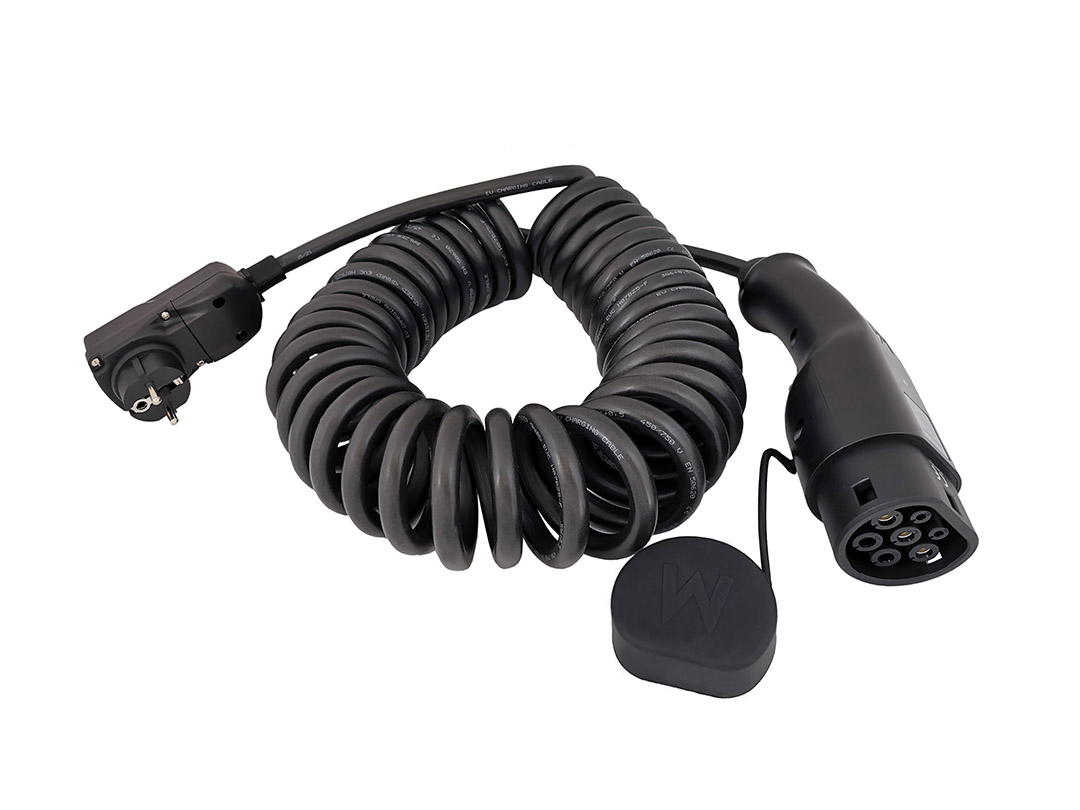

PC03C – 13A / 1-phase

ex.VAT

COMPACT PORTABLE EV CHARGER for charging electric vehicles with Type 2 sockets from any standard home or public wall socket (230V power source) – supports charging with currents up to 13A (up to 3.0 kW charging power). Features RCD (30 mA, Type A) integrated in the wall plug.

Navodila za uporabo – SI User manual – ENG Bedienungsanleitungen – DE
Upute za uporabu – HR Istruzini d’uso – ITA

Description

Main features:

Compact design with RCD integrated in domestic plug
ALL-IN-A PLUG design – NO bulky box on the cable
100% in-house developed miniature FULL feature vehicle communication module EVSE
Designed for 1-phase Mode 2 EV charging with currents up to 13A
Adjustable charging current (from 6A, 8A, 10A and 13A)
Charging current can be changed even during charging process
PREMIUM quality EV charge cable used (Made in Germany)
Selectable plug type with integrated RCD protection (wall socket/grid side)
Selectable cable lengths from 3m to 20m
Rainproof

Cable properties:

Resistant to microbes, oil, dust and water
Special cable design for long service life
Flexible at low temperatures (temp. range: -25°C to 80°C)
Withstands high mechanical stress, in particular abrasion and sliding demands

Note: Applies to the insulated cable part only, not the electronics

EU DECLARATION OF CONFORMITY

SIQ TEST REPORT – PREVIEW
Technical Specifications:

Plug Type (EV Side): Type 2 (IEC 62196) Female Plug
Plug Type (wall socket/grid side): customer defined (Type G, Type F)
Max. Charging Current/Power: 13 A / 3.0 kW (single phase)
Charging current can be adjusted: 6A, 8A, 10A or 13A
Selected charging current stays stored in internal memory even when disconnected from the socket (power)
Rated Voltage: 230V (single phase)
Operating voltage range: from 180V to 270V (50/60Hz)
Micro EVSE inside EV plug – in-house developed FULL feature vehicle communication module
Ultra accurate and temperature independent QUARTZ controlled EV communication frequency
User info via Blue LED light
Cable Length: customer defined
UV, oil and flame resistant cable insulation
Residual current protection: RCD 30mA Type A
RCD has to be activated each time the device is plugged in the socket!
PC03C is not available without RCD!
Operating Ambient Air Temperature Range: -30 °C to 50 °C (at full sun exposure)
Optional integrated self-resettable over-temperature protection with SOFT-OFF capability that protects the domestic plug from overheating
IP Rating: IP54 (rainwater resistant)
Cable Color: Orange or black
Weight: depends on cable length
Note on Renault Zoe: Normally also works with Renault Zoe, but this car is also grid sensitive, so we do not guarantee 100% compatibility!
IEC 61851 compliant
CE approved
Warranty: 2 years
