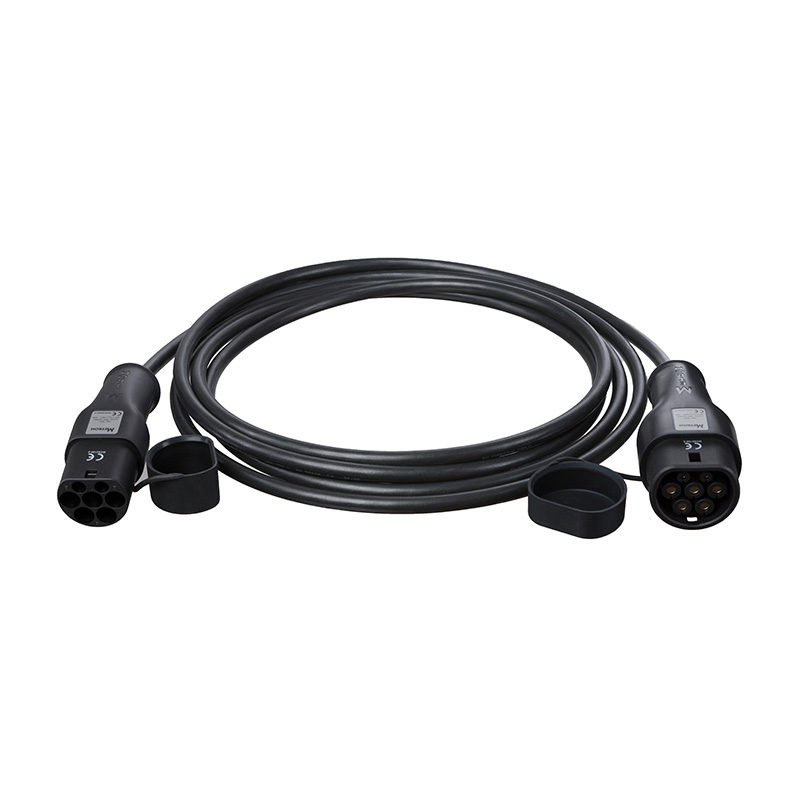

[CC05HD] Type 2 to Type 2 (20A, 3-phase) – Heavy Duty

Description

Main features:

• Designed for 3-phase EV charging with currents up to 3 x 20A (13.8 kW)
• PREMIUM quality EV cable used (Made in Germany)
• Variable cable lengths from 3m to 30m (contact us for lengths above 20 m, due to a need for customized proforma invoice)

• 8 YEARS WARRANTY

Technical Specifications:

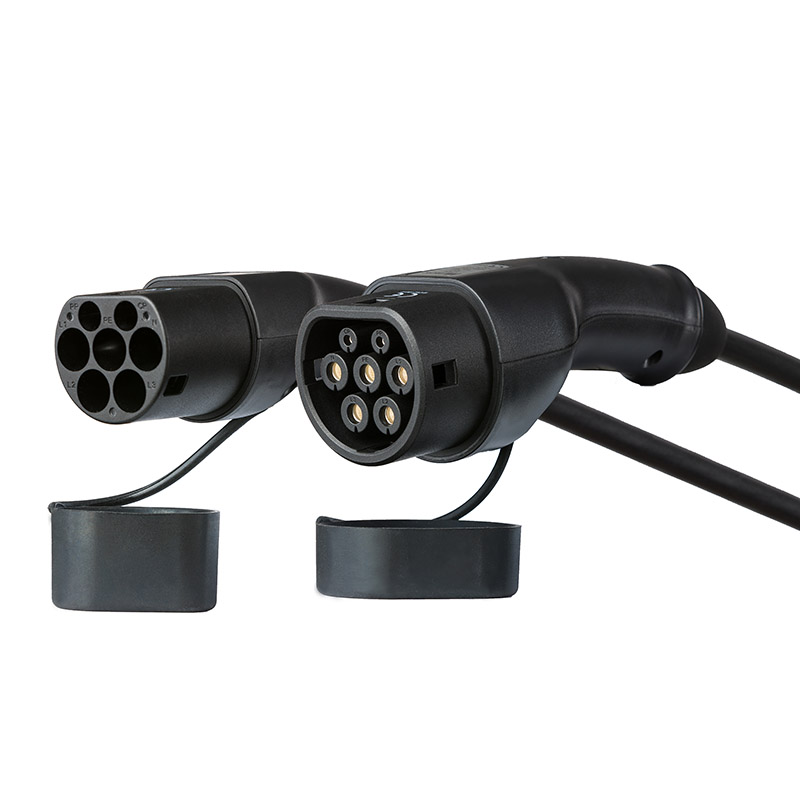

• Plug Type (EV Side): Type 2 (IEC 62196) reinforced filled Female Plug
• Plug Type (Charging Station Side): Type 2 (IEC 62196) reinforced filled Male Plug
• Max. Charging Current: 3x20A (3-phase) or 1x20A (1-phase)
• Max. Charging Power: 13.8 kW (3-phase) or 4.6 kW (1-phase)
• Rated Voltage: 400V (3-phase)
• Cable Length: customer defined
• UV, oil and flame resistant cable insulation
• Operating Ambient Air Temperature Range: -30 °C to +50 °C
• IP Rating: IP44
• Cable Color: Orange cable with black plugs
• Weight: depends on cable length
• 100% compatible with all electric vehicles that have European Type 2 charging sockets

Green production

All our products are produced in a carbon neutral way by using “Sustainable energy cycle” method. Production plant where we make charging cables and portable charging stations is the first fully sustainable production facility for EV charging cables. All energy, needed for the heating and cooling of the building, production process and for transportation of goods and employees (except deliveries of heavy materials by trucks), is produced by 2 photovoltaic power plants and stored in 4 storage batteries. Almost all of the raw materials we use (cables, plugs) are produced in EU, to shorten supply routes and support local economy. Buying our products helps developing sustainable economy.
